CR Series Door Coordinators

I-TEK CR Series Door Coordinators

Bar Coordinator

Bar Coordinator

Patent No. 9,476,240 B1

CR-32 / CR-42 / CR-52 / CR-60 / CR-72

Klacci’s CR Series Bar Coordinators offer a simple yet effective way of regulating double door entries. These products guarantee a correct order of door closing and prevent that any entry that is not properly closed may cause a safety concern in case of emergency.

Features

  • The lever mechanism on the active door side holds the active door open until a trigger mechanism releases it when the passive door closes.
  • An adjustable override mechanism allows the active door to close first in case that an excessive force is applied on it to protect the door as well as the coordinator from further damage.
  • These units are compatible with flush bolts, door closers and other double door hardware for a more complete application.

Certification/Compliance

  • Conforms to ANSI/BHMA A156.3 Type 21A (Grade 1).
  • UL/cUL Fire Rated for 3-Hour Fire Door Hardware, conforms to UL10C.

Filler Bar

Filler Bar
FLB-20 / FLB-32 / FLB-48

Features

The filler bar can be used to fill the gap between the end of the bar coordinator and the inactive door’s stop for more pleasant aesthetics.

Mounting Bracket

Mounting Bracket
MB-1F / MB-2F / MB-3F

Features

The mounting bracket can be installed along with fire-rated hardware, such as parallel arm closers and surface vertical rod exit devices, used for stop mounted hardware to be properly installed without damaging the bar coordinator.

Note: Stop mounted hardware will need to be lowered to compensate for the height of the Bar Coordinator and Mounting Brackets.

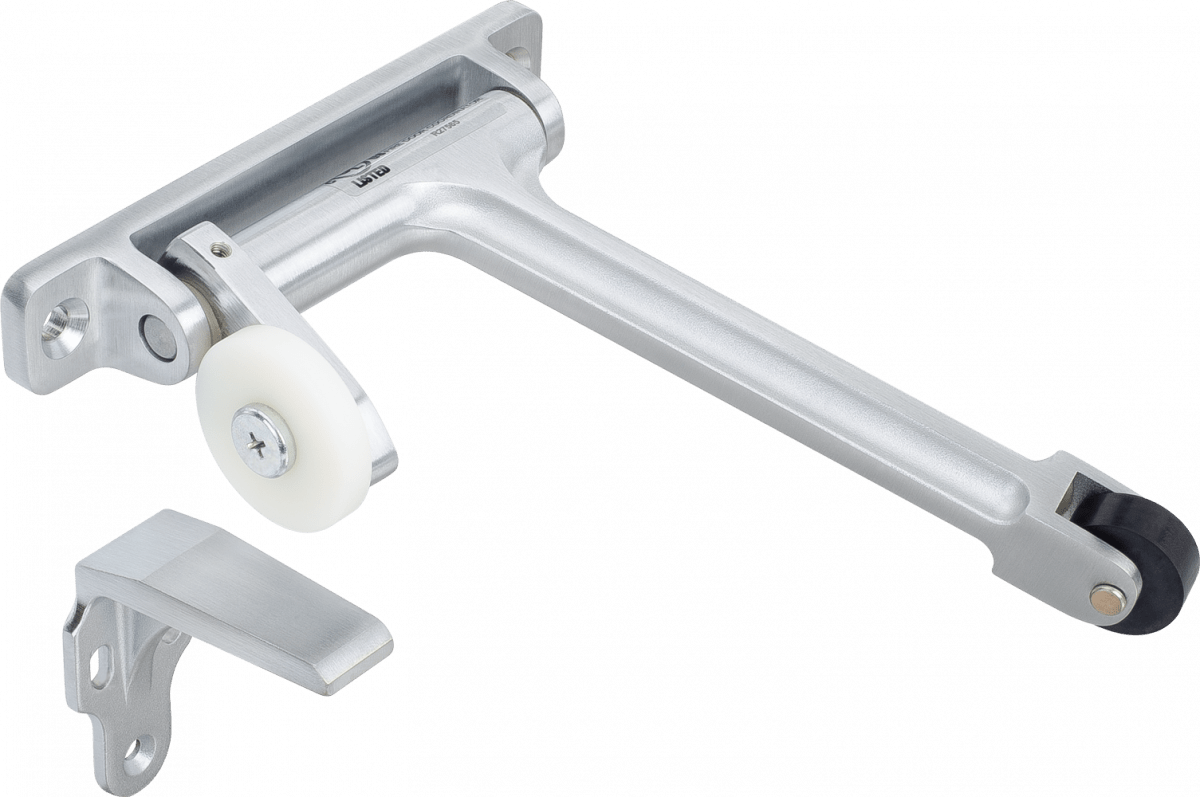

Gravity CoordinatorGravity Coordinator

Patent No. 8,595,980 B1

CR-07 / CR-09

Features

  • The gravity coordinator is applied on pair doors to allow the inactive door to close before the active door.
  • Nylon and rubber rollers provide quiet and efficient operation and help protect the doors from damage.

Certification/Compliance

  • Conforms to ANSI/BHMA A156.3 Type 21B (Grade 2).
  • UL/cUL Fire Rated for 3-Hour Fire Door Hardware, conforms to UL10C.

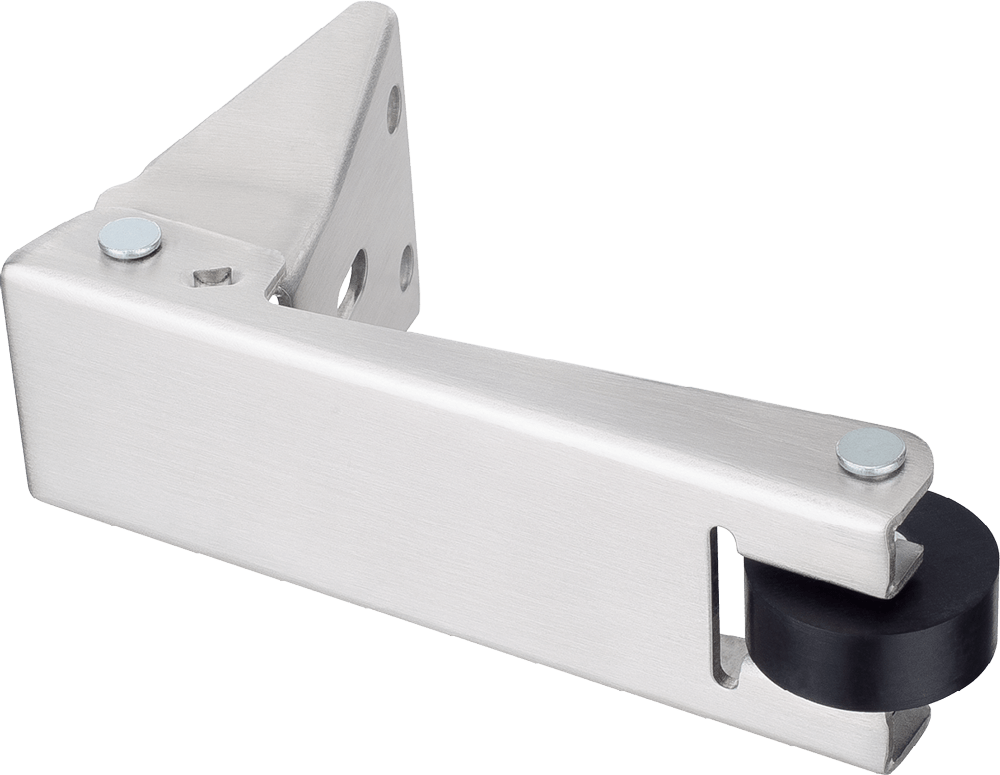

Carry Open Bar

Carry Open Bar
COB

Features

  • When the inactive door is opened, the carry open bar provides the automatic opening of the active door as well.
  • The carry open bar cannot be installed along with flush bolts.
  • Door coordinator accessory for fire-rated application.

Certification/Compliance

  • Conforms to ANSI/BHMA A156.3 Type 21 (Grade 1).
