Applications
Offices, schools, banks, assisted living facilities and other institutions or commercial buildings.
Doors & Preparations
- For all types of single and double doors with a mullion.
- For mullions, see page 31.
- Available for 1-3/4” to 2-1/4” (45mm – 57mm) thick, up to 4’ wide opening.
- For thicker doors, consult factory.
- For new or retrofit installation into other manufacturers’ devices.
- Furnished standard for 1-3/4” thick, 3’ wide opening.
- For maximum door opening applications and listings for Fire Exit Devices, see page 40.
Specifications
| Certification/Compliance | • Panic devices UL/cUL listed for UL305 and ANSI/BHMA A156.3-2014 Grade 1 Panic Hardware. • UL/cUL Fire rated for 3-hour Fire Exit Hardware, conforms to UL10C and UBC7-2. Also complies with NFPA 80 Fire doors and windows. • Exit devices, levers, trims and pulls comply with American Disability Act (ADA) and NFPA 101 life safety code. |

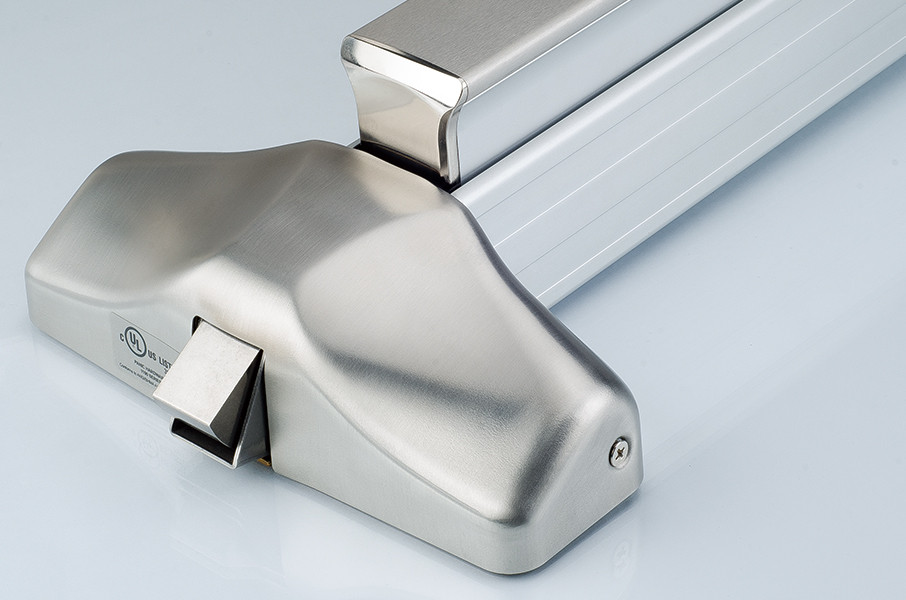

| Center Case | • Universal center case, heavy wrought steel and sintered metal parts. • Device functions are determined by adaptation with type of trim. |
| Strikes | Panic: P/N. 106 (roller type) Fire: P/N. 108 (roller type) |
| Dogging | • NOT available on Fire Exit Hardware. • Dogging options available for LD, CD, ED (ELR). • Flat/Hex key dogging standard. |
| Fasteners | • Machine screws and wood screws are furnished standard. |
| Sex Bolts (SNB) | • Required when used with wood, composite or non-reinforced hollow metal doors. For Exit Only device, specify 8-1024 SNB (No. 10-24). For device with trim, specify 2-1024 SNB (No. 10-24). |
| Electric Functions | Can be interfaced with building security systems: • AL Alarm Exit • DE Delayed Egress Device • ELR Electric Latch Retraction • LM Latch Bolt Monitoring • RX Request to Exit • SS Signal Switch |
| Device Centerline from Finished Floor | • 39-5/8” (1006mm) |
| LatchBolt | • Stainless Steel, deadlocking, 3/4" (19mm) throw. |
| Handing | • Trim field reversible. • Device non-handed except for Double Cylinder option. For Double Cylinder, specify handing when required. |
| Cylinders | • NOT furnished standard, specify when required. |
